Custom input builders

A custom input builder replaces free-form value entry with an editor designed for a specific component value. This example adds a Route input for the Feature Gallery's Url state and presents the known routes in a drop-down list.

How input builders are selected​

Diagnostics evaluates AkburaDiagnosticsOptions.InputBuilders in order. Every builder whose CanProvide() method returns true appears in the selector, and the first compatible builder is selected initially.

Insert an application-specific builder at index 0 when it should be preferred over the built-in editors. The universal editor remains available as the final fallback.

Create RouteInputBuilder​

Create this file:

src/Akbura.FeatureGallery/Akbura.FeatureGallery/Diagnostics/RouteInputBuilder.cs

Add the following implementation:

using Akbura.Diagnostics;
using FeatureGalleryComponent = Akbura.FeatureGallery.Components.App;
using Avalonia.Controls;
using Avalonia.Controls.Primitives;
using Avalonia.Data;
using Avalonia.Markup.Xaml.MarkupExtensions.CompiledBindings;

namespace Akbura.FeatureGallery.Diagnostics;

public sealed class RouteInputBuilder : InputBuilder
{
    public override Type OutputType => typeof(string);

    public override bool CanProvide(InputRequest request)
    {
        ArgumentNullException.ThrowIfNull(request);

        return request.EditorType == typeof(string) &&
               request.ComponentInstance is Router &&
               string.Equals(
                   request.MemberName,
                   nameof(Router.Url),
                   StringComparison.Ordinal);
    }

    protected override Control BuildCore(InputRequest request)
    {
        return BuildCore(
            request,
            request.ExistingValue);
    }

    protected override Control BuildCore(
        InputRequest request,
        object? existingValue)
    {
        var router = (Router)request.ComponentInstance!;
        var routes = GetRoutes(
            router,
            existingValue as string);

        var comboBox = new ComboBox
        {
            ItemsSource = routes,
            MinWidth = 180d,
            HorizontalAlignment = HorizontalAlignment.Stretch,
        };

        var binding = new CompiledBinding(InputValueBindingPath)
        {
            Source = comboBox,
            Mode = BindingMode.TwoWay,
            UpdateSourceTrigger =
                UpdateSourceTrigger.PropertyChanged,
        };

        comboBox.Bind(
            SelectingItemsControl.SelectedItemProperty,
            binding);

        return comboBox;
    }

    private static IReadOnlyList<string> GetRoutes(
        Router router,
        string? currentRoute)
    {
        var routes = new List<string>();
        var knownRoutes = new HashSet<string>(
            StringComparer.OrdinalIgnoreCase);

        var pages = router.Pages;

        if (pages is not null)
        {
            foreach (var page in pages)
            {
                var route = page.Url;

                if (string.IsNullOrWhiteSpace(route) ||
                    !knownRoutes.Add(route))
                {
                    continue;
                }

                routes.Add(route);
            }
        }

        if (!string.IsNullOrWhiteSpace(currentRoute) &&
            knownRoutes.Add(currentRoute))
        {
            routes.Add(currentRoute);
        }

        return routes;
    }
}

OutputType declares the value produced by the editor. CanProvide() limits the editor to the Feature Gallery App component's Url member. BuildCore() binds the selected route to InputBuilder.InputValueProperty, which is the value contract used by the diagnostics UI.

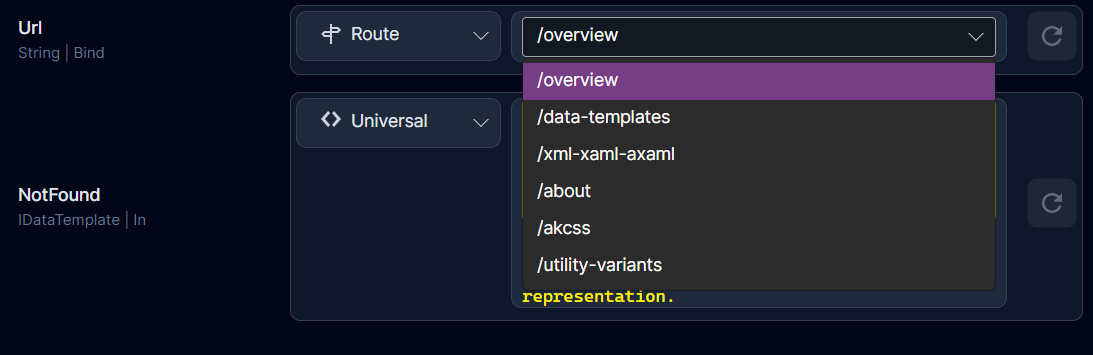

The result is a route-specific editor instead of a plain text field:

Add the input icon​

Diagnostics looks up an icon using the builder's fully qualified type name followed by .Icon. For this class, the resource key must be:

Akbura.FeatureGallery.Diagnostics.RouteInputBuilder.Icon

Add the geometry inside Application.Resources in:

src/Akbura.FeatureGallery/Akbura.FeatureGallery/App.axaml

Place it in the existing ResourceDictionary, after ResourceDictionary.MergedDictionaries and before the closing </ResourceDictionary>:

<StreamGeometry x:Key="Akbura.FeatureGallery.Diagnostics.RouteInputBuilder.Icon">
    M11,2
    H13
    V5
    H19
    L22,8
    L19,11
    H13
    V22
    H11
    V15
    H5
    L2,12
    L5,9
    H11
    Z

    M13,7
    V9
    H18.17
    L19.17,8
    L18.17,7
    Z

    M5.83,11
    L4.83,12
    L5.83,13
    H11
    V11
    Z
</StreamGeometry>

The relevant part of App.axaml should look like this:

<Application.Resources>
    <ResourceDictionary>
        <ResourceDictionary.MergedDictionaries>
            <ResourceInclude Source="avares://Akbura/Styles.axaml" />
        </ResourceDictionary.MergedDictionaries>

        <StreamGeometry x:Key="Akbura.FeatureGallery.Diagnostics.RouteInputBuilder.Icon">
            <!-- geometry from the previous snippet -->
        </StreamGeometry>
    </ResourceDictionary>
</Application.Resources>

Register the builder​

Update App.axaml.cs to import the builder namespace and Avalonia input types:

using Akbura.Diagnostics;
using Akbura.FeatureGallery.Diagnostics;
using Avalonia.Input;

Register the builder while attaching diagnostics:

#if DEBUG
this.AttachDeveloperTools();
this.AttachAkburaDevTools(options =>
{
    options.ToggleGesture = new KeyGesture(
        Key.F12,
        KeyModifiers.Control);

    options.InputBuilders.Insert(
        0,
        new RouteInputBuilder());
});
#endif

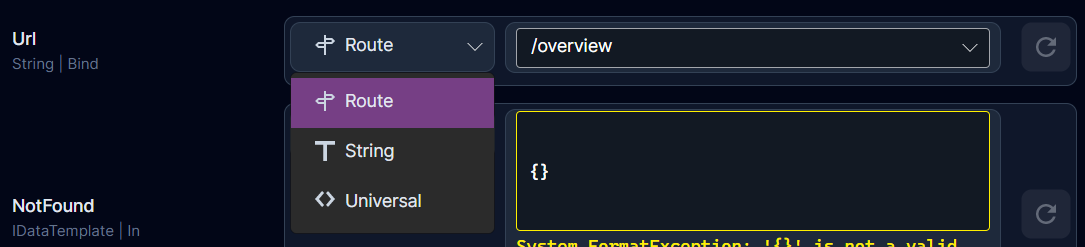

Index 0 gives RouteInputBuilder priority. The selector still lists every other compatible builder, including Universal:

The second Url value in the screenshot belongs to another component. Because CanProvide() restricts the custom builder to the Feature Gallery App component, that value continues to use the universal editor.

Input builder contract​

A custom builder must follow four rules:

1. Return the edited value type from OutputType.
2. Return true from CanProvide() only for values the editor can safely handle.
3. Return an Avalonia Control from BuildCore().
4. Keep the control's editable property synchronized with InputBuilder.InputValueProperty using a two-way binding.

Diagnostics owns Apply, Reload, validation display, and writing the committed value back to the component.

Using application services​

Set options.Services when a builder needs data from the application:

this.AttachAkburaDevTools(options =>
{
    options.Services = serviceProvider;
    options.InputBuilders.Insert(0, new RouteInputBuilder());
});

The builder can read those services from request.Services in CanProvide() or BuildCore().

Troubleshooting​

When the builder does not appear, verify that it was inserted before diagnostics was attached and that CanProvide() matches the actual ComponentType, MemberName, and EditorType.

When the icon is missing, verify that the resource key exactly matches the builder's namespace and class name, including the .Icon suffix.

When the editor changes visually but Apply receives the old value, verify the two-way binding to InputBuilder.InputValueProperty.
